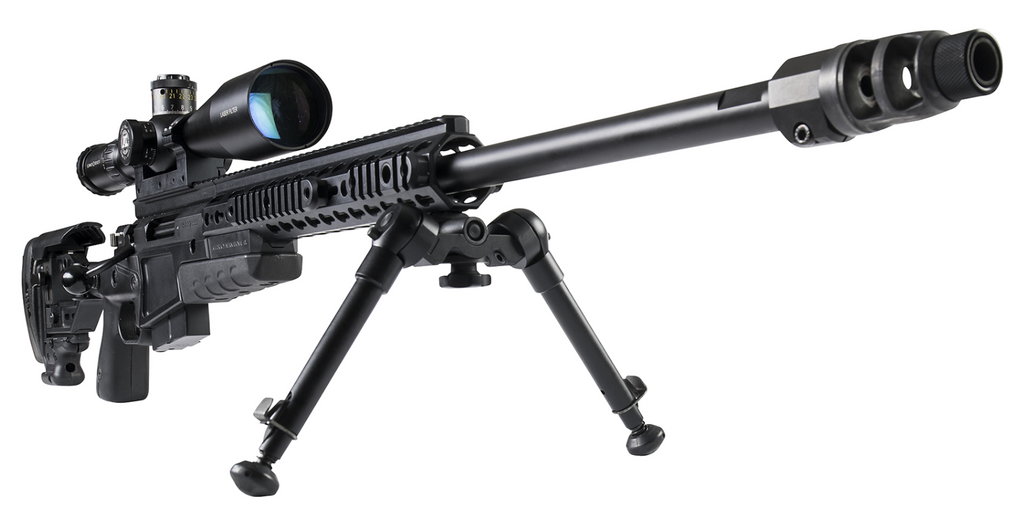

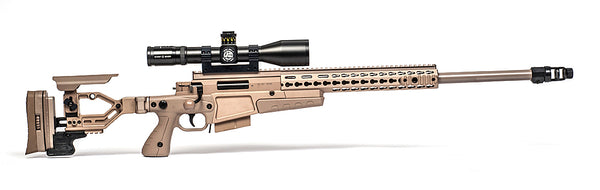

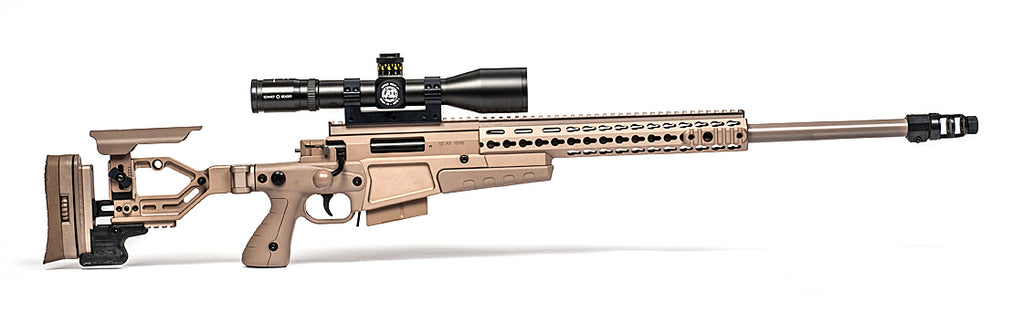

Accuracy International - AX .308 Series Rifle

The short action AX308 (.308 Win) is a worthy successor to the battle hardened AW308, boasting a raft of innovative features including the patented Quickloc system which allows the barrel to be changed or removed for transit using the hex key stored in the cheekpiece.

Specification

• Calibres: .308 Win (Short Action) or 6.5 CM
• Weight: With standard rail setup, empty magazine, no scope, 24” barrel, tactical muzzle brake: 6.2 kg
• Dimensions: With 24” barrel, tactical muzzle brake - Full length: 1155 mm x 180 mm x 100 mm - Stock folded: 940 mm x 180 mm x 105 mm

Base Model

• Standard double chamber Muzzle brake
• STANAG (MIL 1913) Action Rail 20 MOA
• Folding Stock (Right fold)
• Adjustable Cheek Piece
• Adjustable Butt with additional spacer screws
• Forend Mounting System 13"
• Pistol Grip
• Left hand magazine port cut out
• Flush Cup attachment points
• 3 x side accessory rails (1 x 140mm plain, 2 x 80mm Flush cup)
• User Manual
• 1 x 10 round double stack magazine

Options

• Tactical threaded double chamber muzzle brake for AI suppressor

Features

• Proofed steel action featuring AI’s patented Quickloc quick release barrel system, bolted and bonded to aluminium chassis
• 6 lug, 60° bolt with AI combat proven leaf spring extractor

• 3 position safety
• Two stage trigger adjustable for trigger weight between 1.5 and 2kg
• Detachable 10-round double stack magazine - can also be top loaded though the rifle ejection port
• Left side magazine port cut out for ease of magazine insertion

Colours

AX rifles benefit from a high performance Cerakote firearm coating. Choose from:

Black, Sage Green, Dark Earth and Pale Brown

Barrel Options

All AI barrel options are stainless steel, plain threaded for muzzle brake.

• 20” or 24” plain or threaded barrel for AI muzzle brake
• 26” threaded barrel for AI muzzle brake 1 in 12 twist
• 16" Fully Suppressed (.308 Win only)

Accessories

• STANAG 4694 / Mil std 1913 accessory rails to attach to AI’s patented KeySlot™ mounting system
• Bipods
• AI bipod and Harris bipod mount
• Rear butt spike
• Handstop with sling loop and flush cup
• Suppressor
• Slings
• Transit cases
• Cleaning kits
