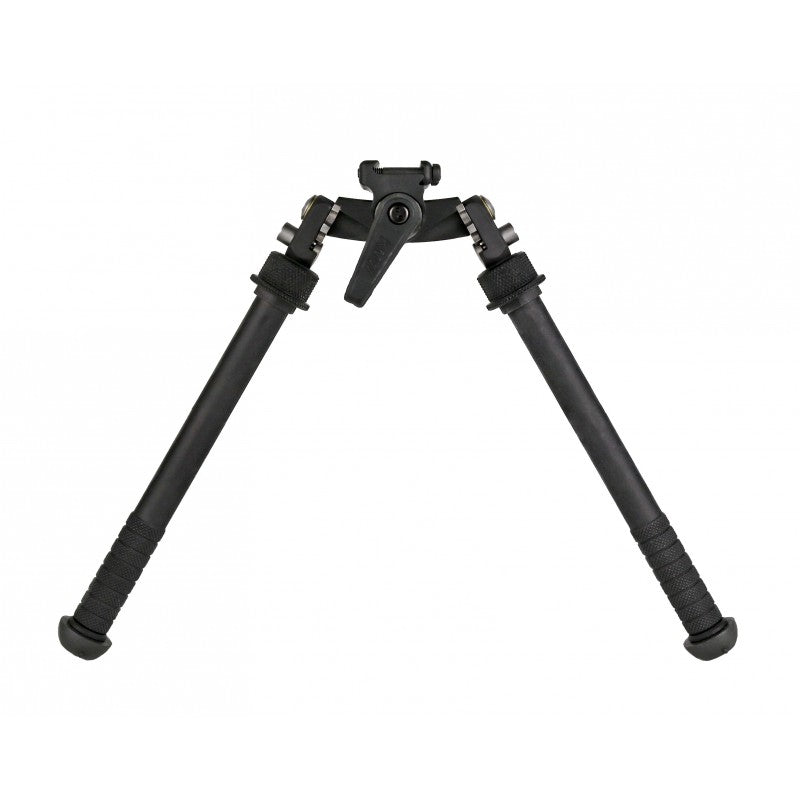

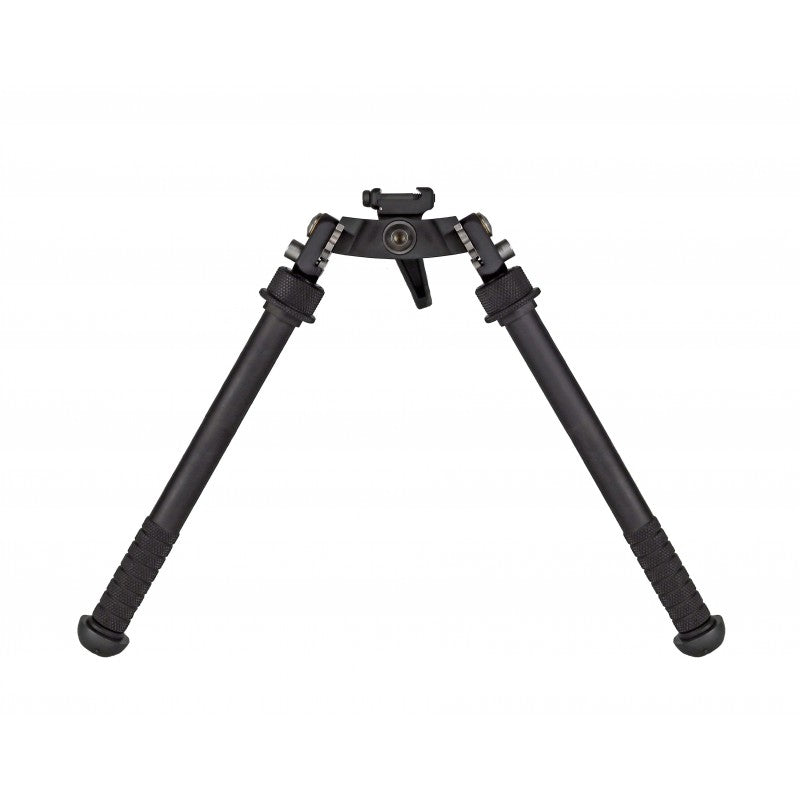

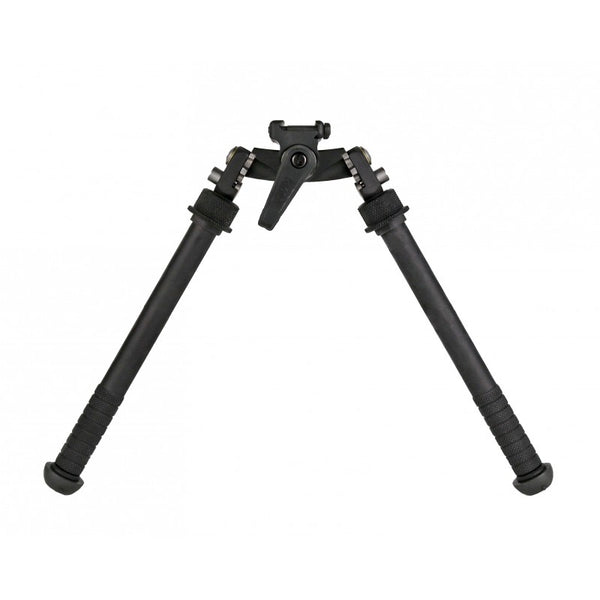

The CAL (Cant And Loc) Atlas Bipods were developed for shooters that do not desire the Panning feature.
The BT69 mounts directly to any 1913 style Picatinny rail via a low profile two screw clamp assembly. It is comprised of 6061-T6 aluminum, except the inner legs which are made from 7075-T6 aluminum, Mil-Spec Type III hard coat anodized and have heat treated stainless steel components. We chose to support a legend in the shooting sports by using the original KMW “Pod-Loc™.”
With the CAL bipod mounted to your rifle, you can lock and un-lock the canting motion by rotating the Pod-Loc™ lever. Turn clockwise to lock and counter clockwise to un-lock. The Pod-Loc™ lever position can be adjusted for positioning by pulling the lever directly away from the body of the CAL and rotating to desired position. This positioning can be repeated until optimal position is achieved. Available in black only.
- Height Range: 6 - 12.25” approx.
- Cant: 15° +/-
- 5 leg positions: 0, 45, 90, 135 and 180°
- Non-Rotating Legs: outer leg does not rotate around inner leg
- Larger, stronger inner legs
- Weight: 14.485 ounces
- Footprint: 9.25 - 16.5”
Designed, Engineered, Machined & Assembled in America.
